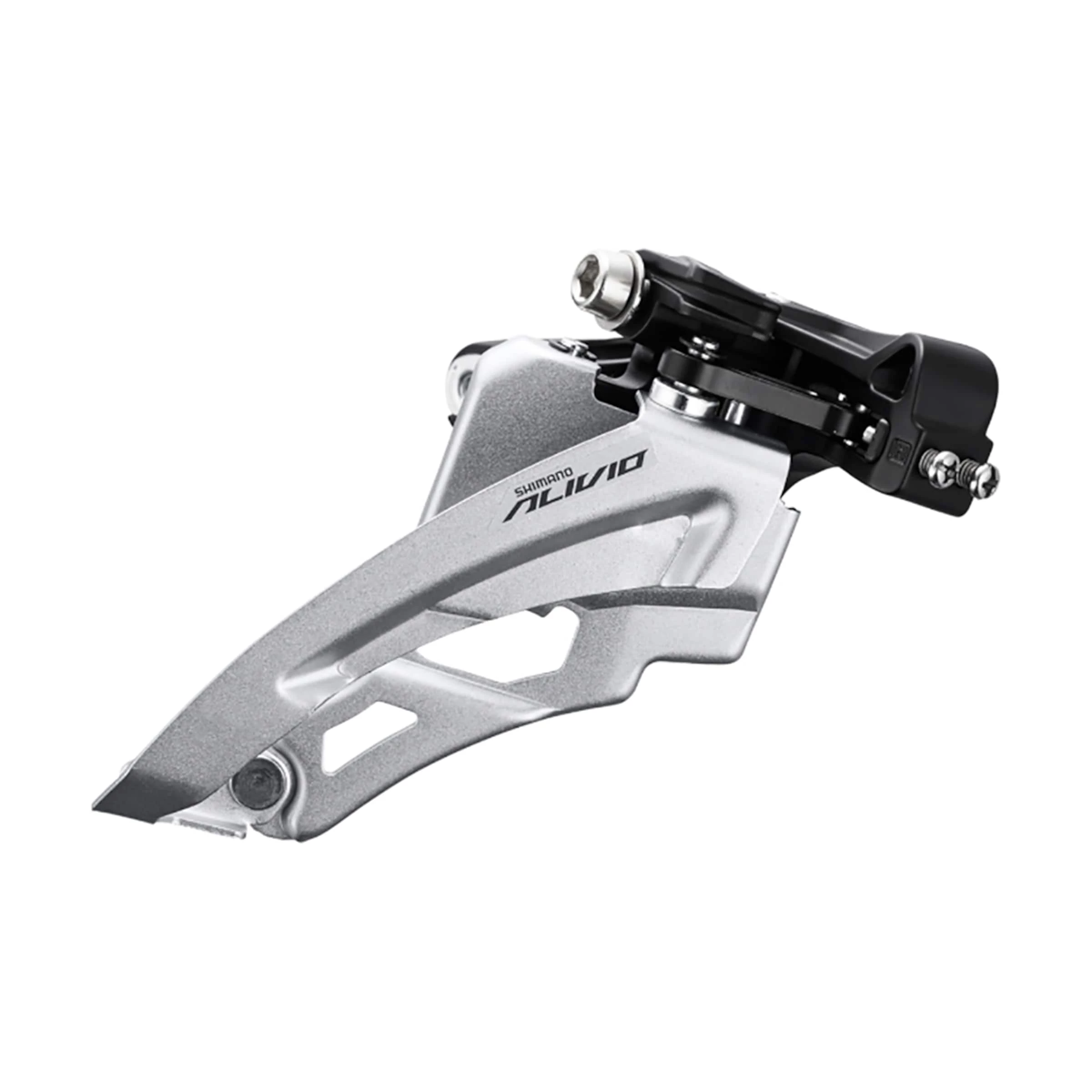

ALIVIO FD-M3100-M Front Derailleur 3 X 9-speed – Clamp Attachment

The SHIMANO FD-M3100-M 3 x 9-speed front derailleur with clamp attachment has the established SIDE SWING technology from SHIMANO for better cable routing, ease of motion, and problem-free control. The reworked design also offers more room for large wheels and short chainstays.

Details:
• SIDE SWING design for better tyre clearance and efficient cable routing for smooth shifting
• For high performance and quiet shifting with triple crankset
• Reworked cage design reduces chain abrasion with fully suspension bikes

Specs:
• Intended use: MTB
• Series: ALIVIO
• Model: FD-M3100-M
• Material: aluminium, steel
• Type: M-Type (Mid-Clamp attachment Ø 34.9 mm (with adapter 31.8/28.6 mm))
• Drive: Front Pull
• Gear steps front: 3-cross
• Gear steps rear: 9-speed
• Large chainring: max. 40 teeth
• Total capacity: 18 teeth
• Chainline: 50 mm
• Chain stay angle: 66-69°
• Compatible chains: SHIMANO HG 9-speed

In the box:
• 1 SHIMANO ALIVIO FD-M3100-M Front Derailleur for fast assembly (mid-clamp)
ATTENTION:
The front mech requires a frame that allows front pull.
