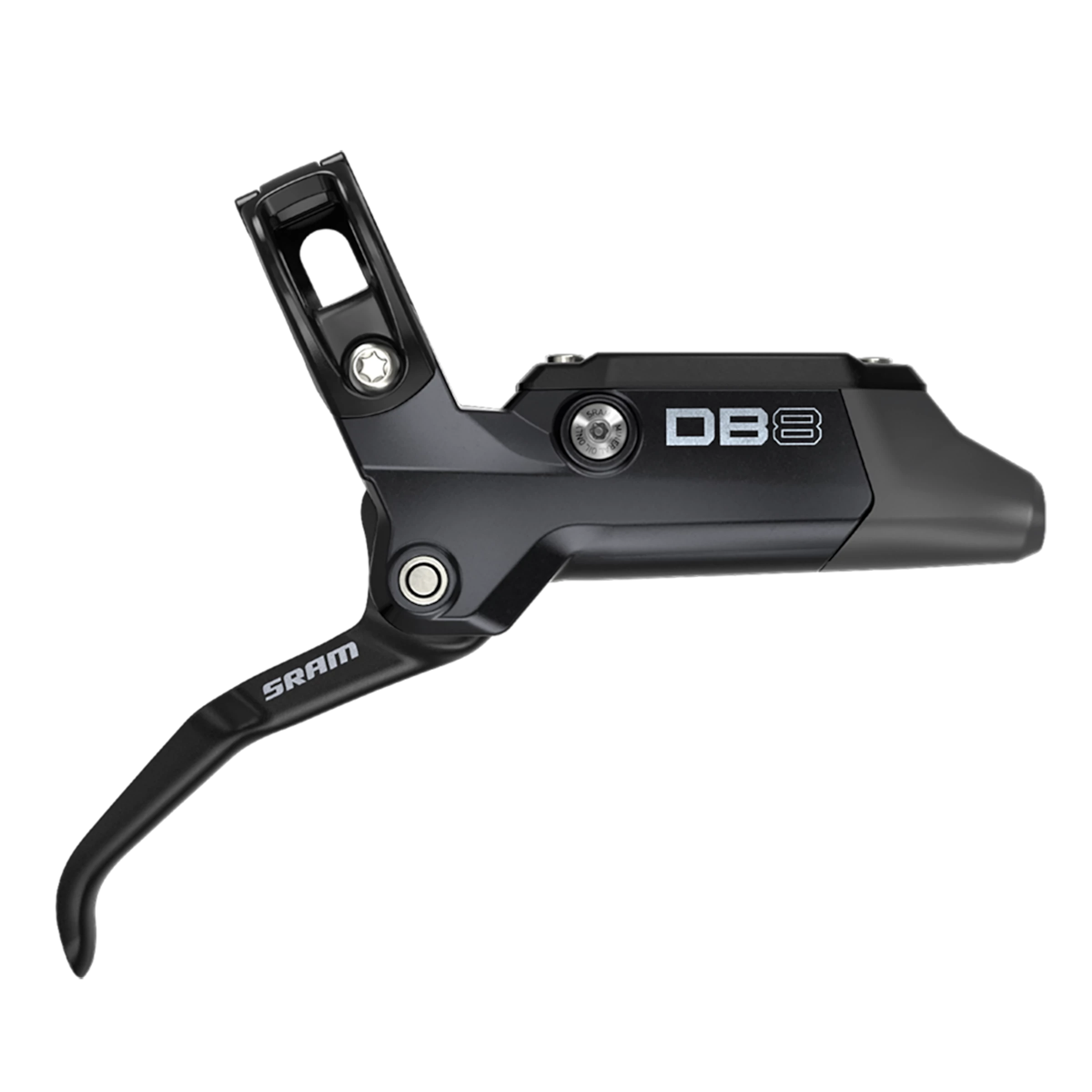

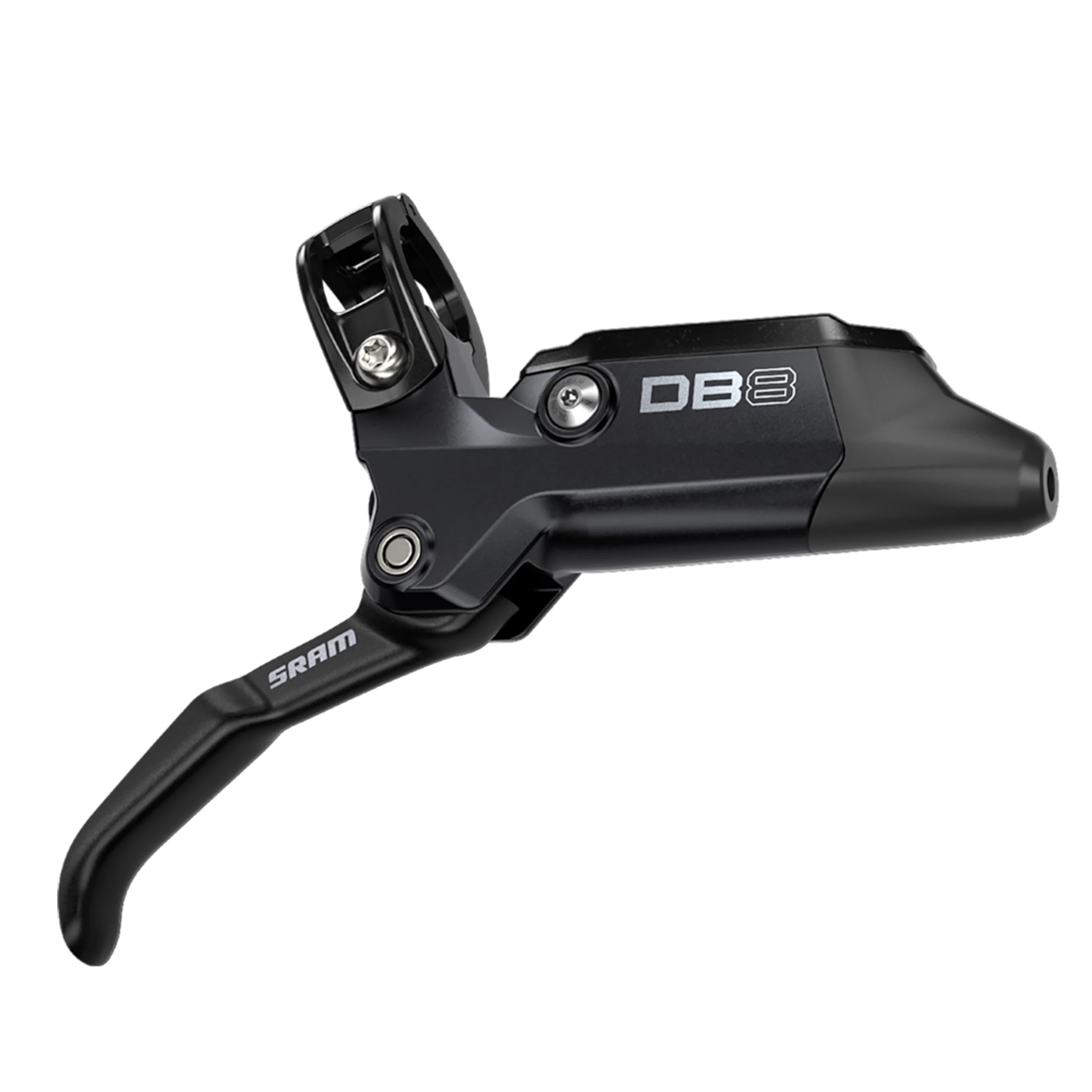

DB8 Disc Brake (Mineral Oil)

The SRAM DB8 4-piston disc brake is a simple, robust and, above all, powerful stopper for all those who prefer riding to wrenching – true to the motto: Set and forget!
This is made possible by the use of a particularly low-maintenance mineral oil system.
The proven SRAM lever geometry also impresses with outstanding ergonomics and easy adjustability of the lever reach. In this way, the DB8 ensures comfortable braking as well as outstanding braking power modulation.
Braking performance is at the almost legendary SRAM Code level, since the DB8 disc brake uses a similar calliper architecture and even the existing Code brake pads.

Details:
• Hydraulic MTB disc brake with 4-piston brake calliper
• Flip Flop brake lever for left or right side mounting
• Uses the existing Code brake pads

Technical details:
• Material: forged aluminium, anodised (brake lever, housing, brake calliper); phenolic plastic (piston)
• Number of pistons: 4

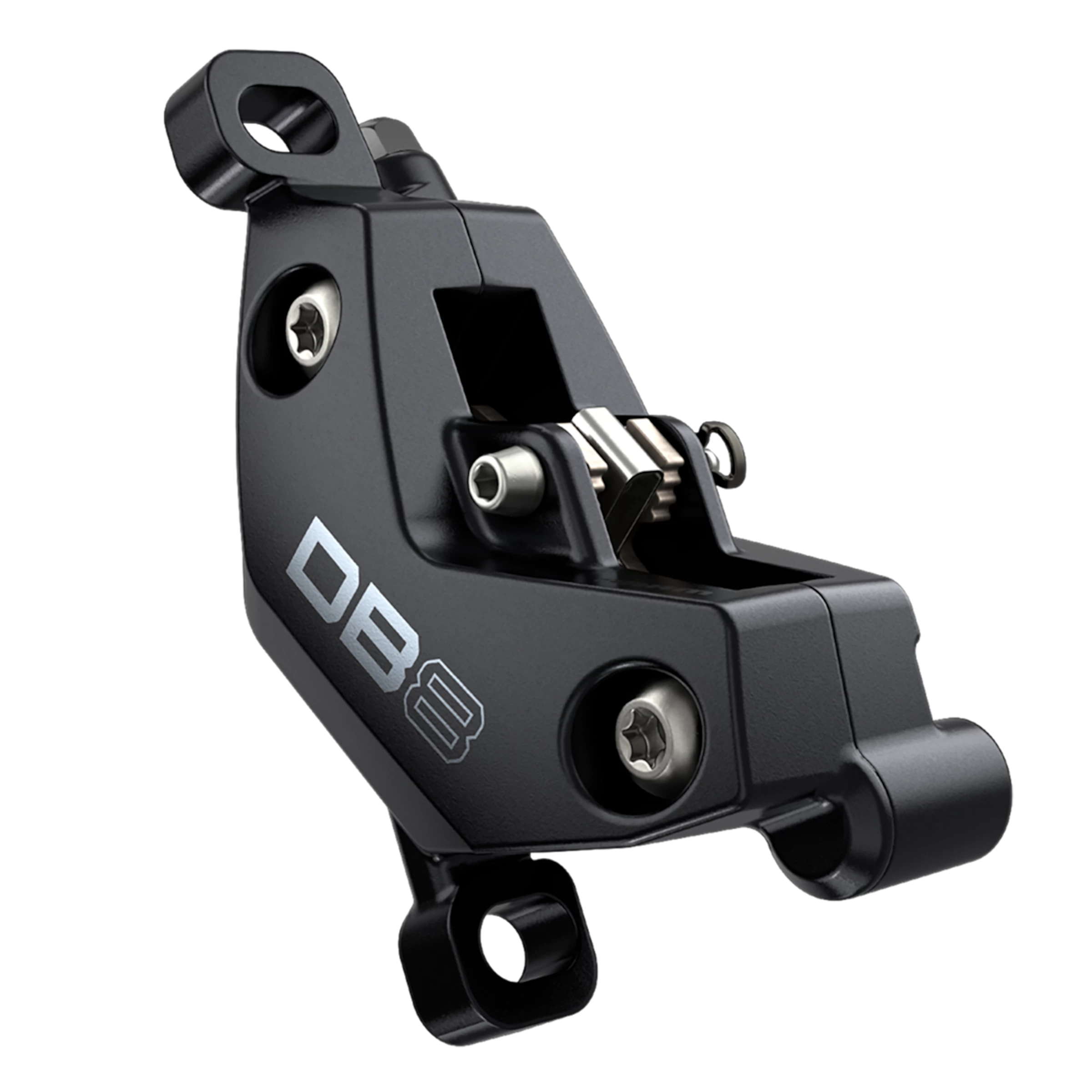

• Brake calliper: post mount
• For handlebar Ø: 22.2 mm
• Brake pads: organic on steel backing plate
• Brake fluid: SRAM Maxima Mineral Oil
• Lever reach adjustment: yes (with tools)
• Contact point adjustment: no
• Compatible with MatchMaker X™

Available versions:
• Front wheel (950 mm hose length)
• Rear wheel (1800 mm hose length)
Please indicate your choice.

In the box:
• 1 SRAM DB8 R disc brake (filled and bled, ready for installation)
• 1 x pair of SRAM brake pads (organic)
• 1x MMX™ lever clamp
• Mounting kit (olive, insert pin, material for shortening and connecting the brake hoses, brake caliper bolts)

ATTENTION:
ONLY for use with SRAM Maxima mineral oil (prod. code: 2326946)!

Compatible optional accessories:
• SRAM Maxima Mineral Oil (prod. code: 2326946)
• SRAM Pro Mineral Oil Bleed Kit (prod. code: 2326949)
