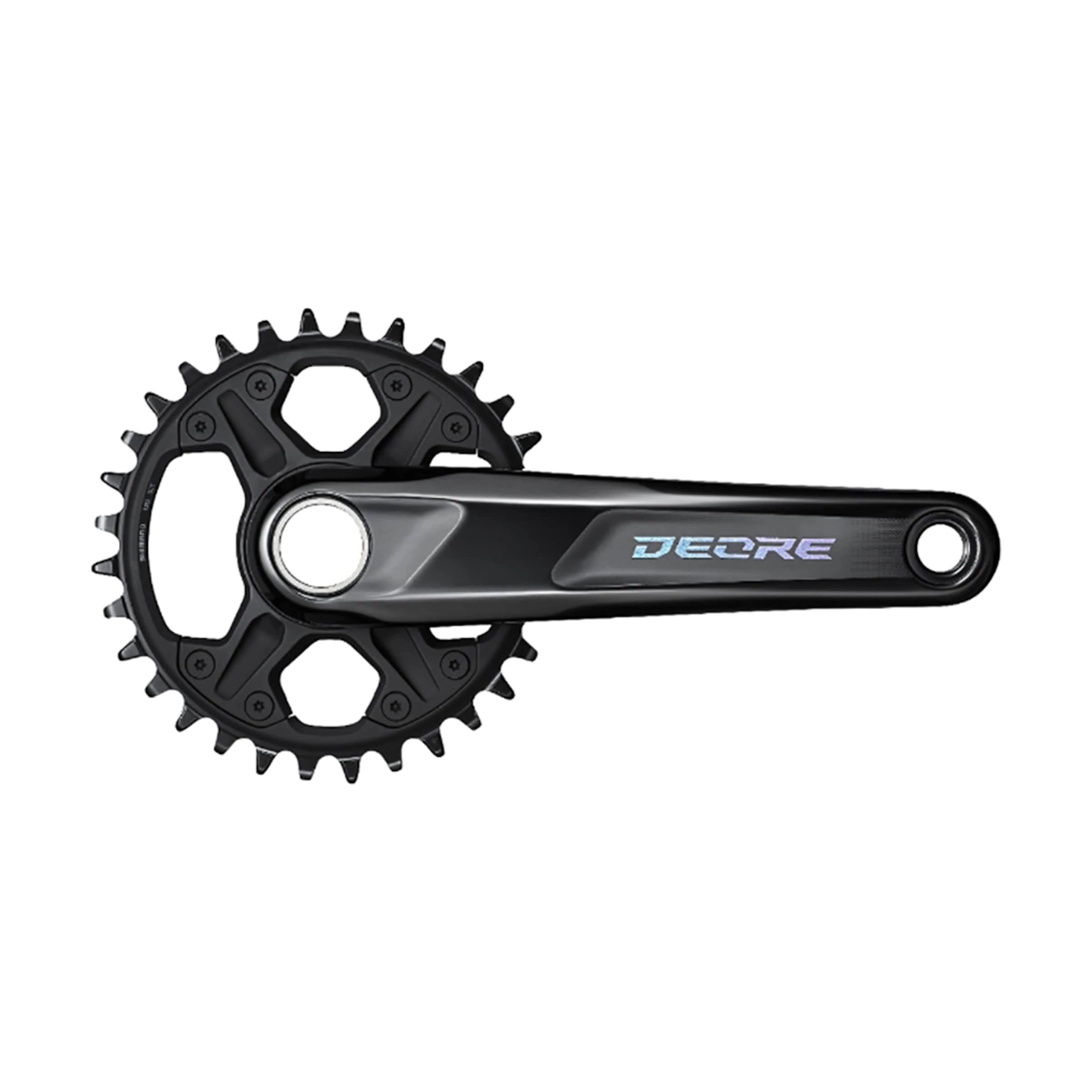

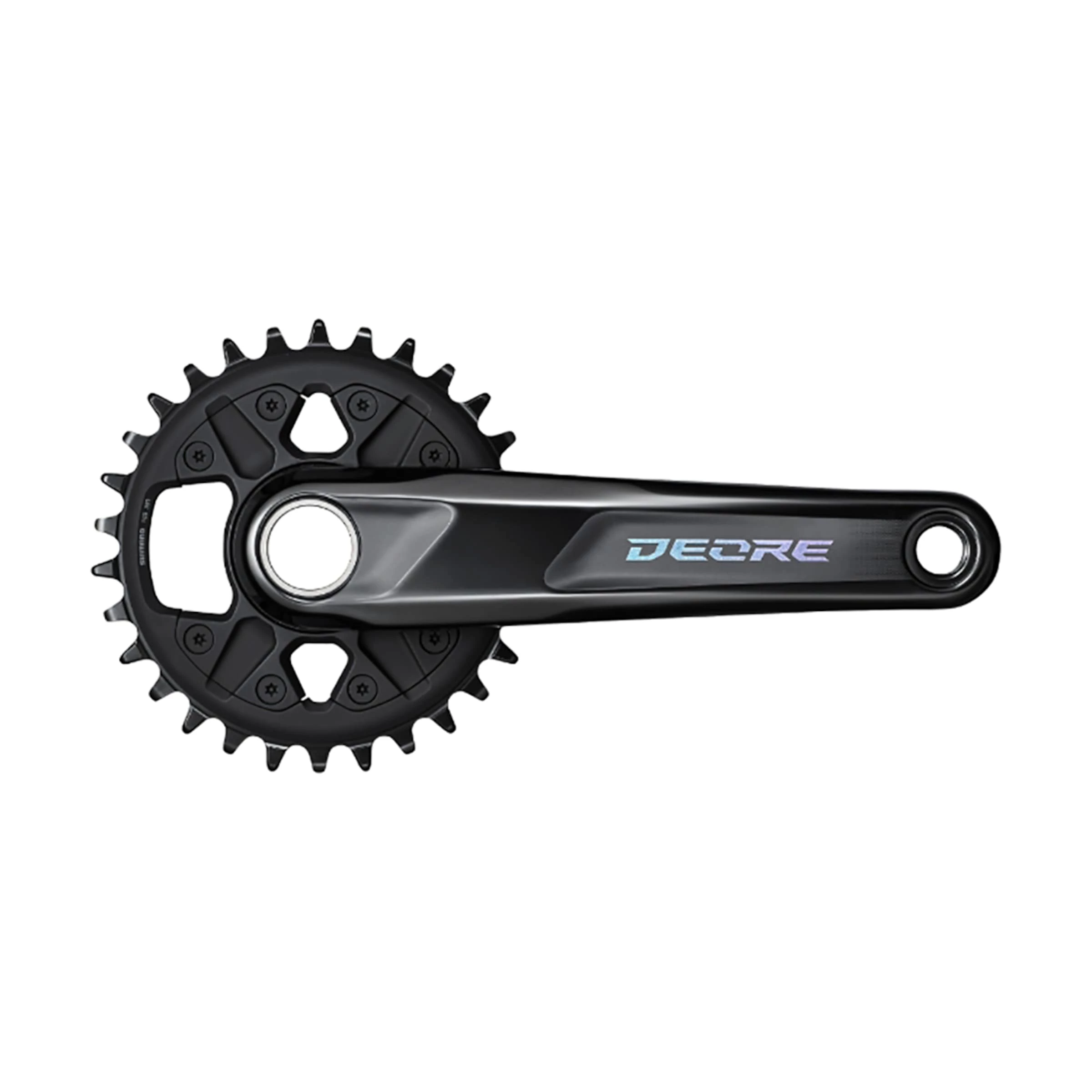

DEORE FC-M6120-1 BOOST Hollowtech II MTB Crankset 1 X 12-speed

SHIMANO DEORE goes 12-speed!
The SHIMANO DEORE FC-M6100-1 MTB-crankset provides a reliable chainring setup with excellent chain guiding for 1 x 12-speed drivetrains. These two-piece cranks offer a chainring with either 30 or 32 teeth which can be directly mounted, a special tooth profile for better grip on the chain, and a chainline of 55 mm, which is compatible with 148 mm frame locknut dimensions (BOOST).

Details:
• 1 x 12-speed crankset with integrated axle (Hollowtech II)
• Two-piece crankset increases the stiffness of the chainset with low weight and ensures efficient pedal force transference
• DYNAMIC CHAIN ENGAGEMENT+ helps the chain run more smoothly and securely
• DirectMount chainrings

Specs:
• Intended use: MTB
• Series: DEORE
• Model: FC-M6120-1
• Type: Hollowtech II
• Gear steps front: singlespeed
• Gear steps rear: 12-speed
• Gear ratio: 30- or 32-tooth chainring
• Bolt circle: Direct Mount
• Chainline: 55 mm (for 148 mm locknut dimensions, BOOST)
• Q factor: 178 mm
• Compatible chains: SHIMANO 12-speed HG+

Available in the following versions:
• 170 mm crank arm length, 30-tooth chainring
• 170 mm crank arm length, 32-tooth chainring
• 175 mm crank arm length, 30-tooth chainring
• 175 mm crank arm length, 32-tooth chainring
Please indicate your choice.

In the box:
• 1 SHIMANO DEORE FC-M6120-1 Crank 1 x 12-speed
Note: WITHOUT bottom bracket!

Optional bearing cups:
• BSA: SM-BB52 (product code: 2058694)
• PressFit: BB-MT500 (product code: 2234036)
