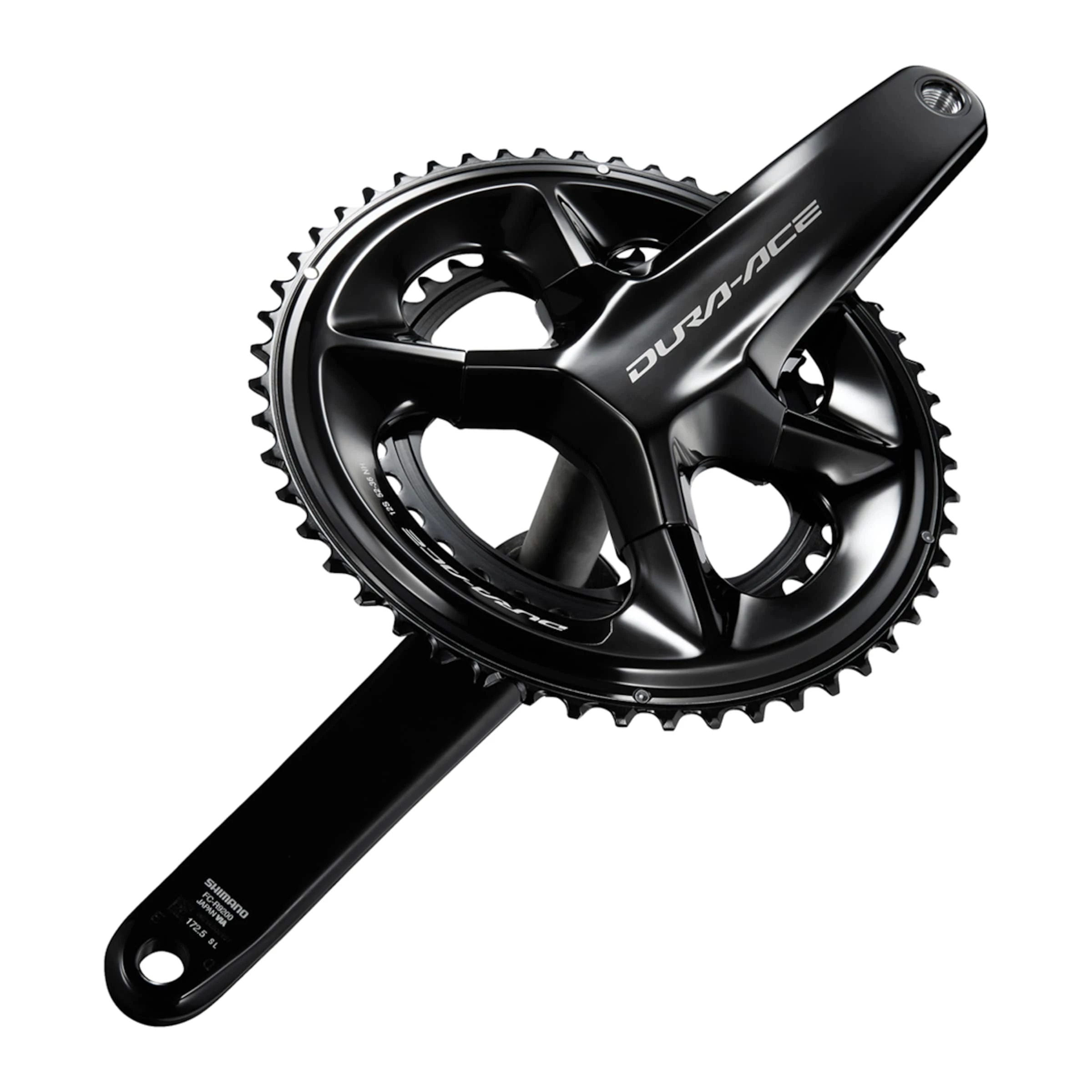

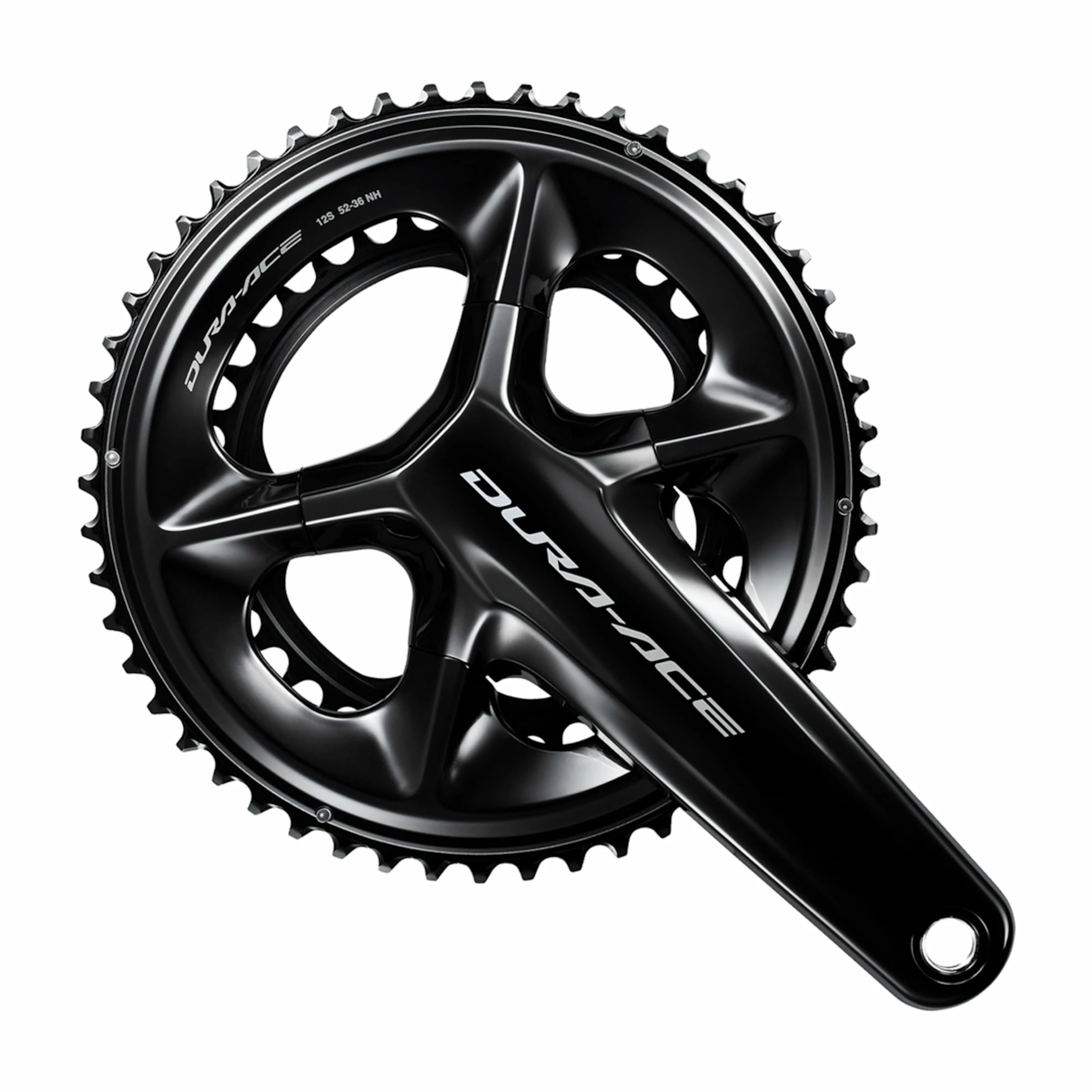

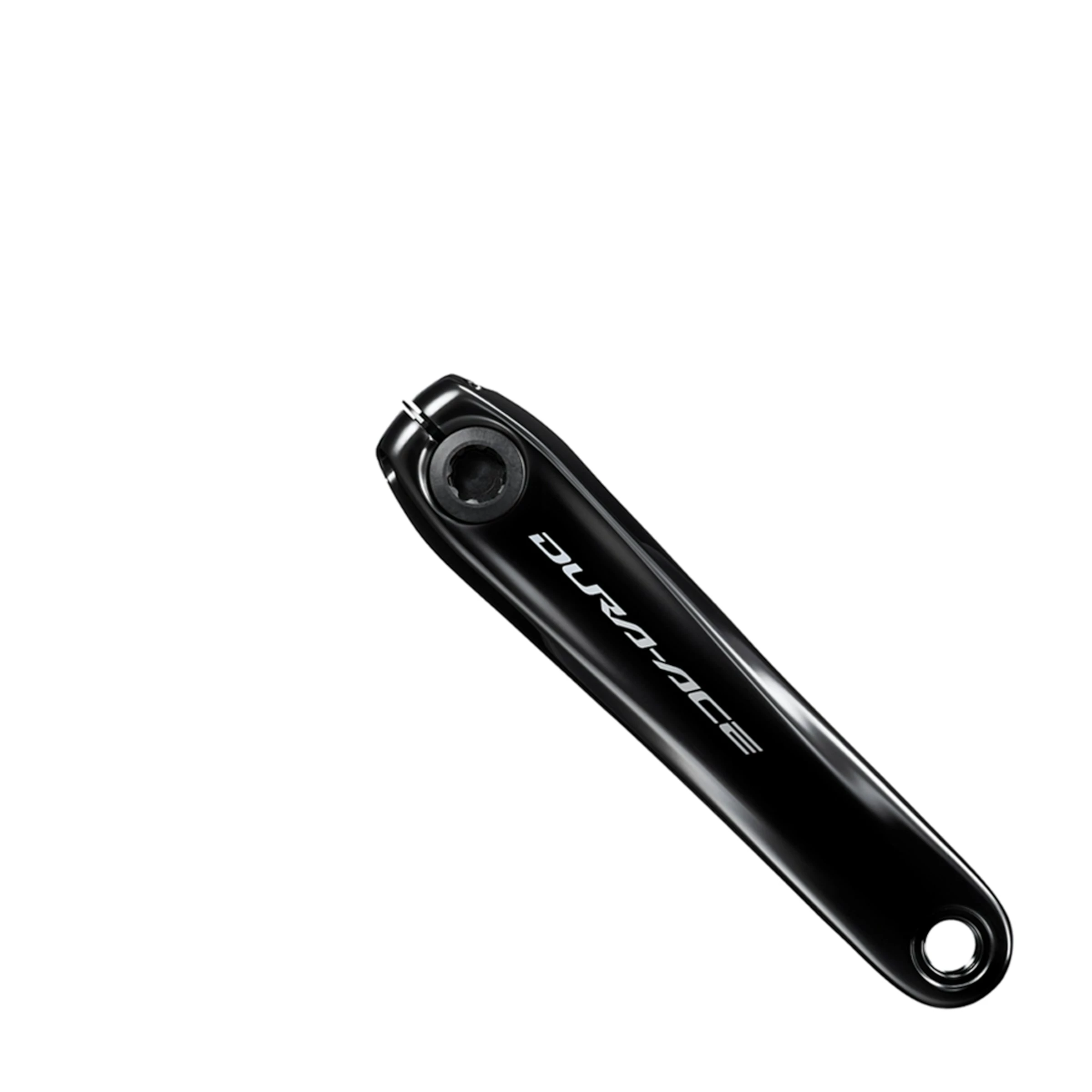

Dura Ace FC-R9200 Hollowtech II Crankset 2/12-speed

The Dura Ace FC-R9200 crankset presents itself to the ambitious cyclist in a noble design, with improved performance and a low weight. The wider crank arms further increase stiffness and optimise power transfer from the pedal to the drivetrain. Together with the Hollowglide chainrings, a high level of efficiency is achieved.

Details:
• Crankset with integrated axle
• Hollow forged aluminium crank arms
• High stiffness and low weight thanks to 4-arm design

Technical details:
• Intended use: Road bike
• Series: Dura Ace
• Model: FC-R9200
• Material crank arms: aluminium (hollow)
• Material chainring: aluminium/composite (large), aluminium (small)
• Gears: 2×12 speed
• Axle: Hollowtech II
• For a shell width of: 68 / 70 mm
• Bolt circle: 110 mm/ 80 mm (asymmetric)
• Chainline: 44.5 mm
• Q factor: 148 mm
• Weight: approx. 685 g (170 mm, 50-34)

Available in gear ratios:
• 50 – 34 teeth
• 52 – 36 teeth
• 54 – 40 teeth

Please indicate your choice.

Available with crank arm length:
• 165 mm
• 167.5 mm
• 170 mm
• 172.5 mm
• 175 mm
• 177.5 mm

Please indicate your choice.

Recommended bottom bracket:
• BSA SM-BB-R9100 (prod. code: 2237811)
• Pressfit SM-BB92 (prod. code: 1860764)
Recommended chain:
• CN-M9100 (prod. code: 2273556)

In the box:
• 1 SHIMANO Dura Ace FC-R9200 crankset 2/12-speed (without bearing cups)
