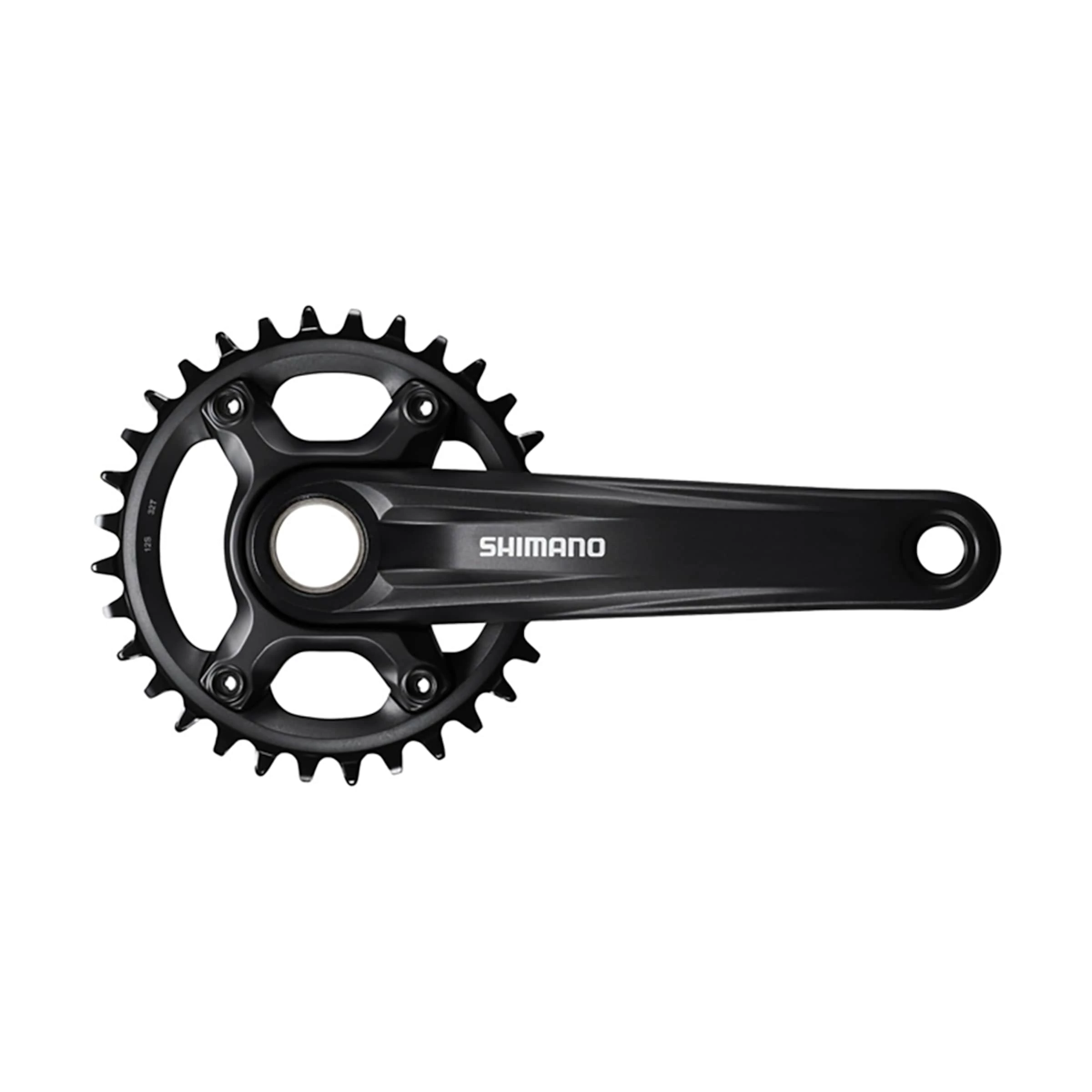

FC-MT610 Hollowtech II Crankset 1×12/52 Mm Chainline

SHIMANO’s FC-MT610 at SLX level is a robust 12-speed crankset for your MTB with single chainring setup – no-frills, just high reliability.
A 52 mm chain line increases drivetrain performance for the BOOST standard (148 mm) as well as for 135/142 mm standards, thanks to the chamfered inner plates of SHIMANO’s Hyperglide+ 12-speed chains. Thanks to DYNAMIC CHAIN ENGAGEMENT+ (DCE+), the chain even stays on the chainring during jumps and on rough terrain.

Details:
• Hollowtech II 1 x 12 crankset
• Crankset with integrated 24mm axle

Specs:
• Material crank arms: aluminium
• Material chainring: steel/fibreglass reinforced plastic
• Compatible with SHIMANO Hyperglide+ 12-speed
• Chainline: 52 mm
• Q factor: 177 mm
• Bolt circle: 96 mm
• 4-arm design
• Recommended chain: SLX CN-M7100 (product code: 2286423)
• For a shell width of 68/73 mm
• For rear axle: 135/142 mm and 148 mm (BOOST)
• Weight: approx. 772 g (175 mm / 32T)

Available with crank arm length:
• 170 mm
• 175 mm
Please make your choice.

Available with chainring size:
• 30 teeth
• 32 teeth
• 34 teeth
Please make your choice.

Bottom bracket cups (optional):
• BSA BB-MT800 (product code: 2138176)
• Pressfit BB-MT800-PA (product code: 2234221)

In the box:
• 1x SHIMANO FC-MT610 crankset
• 1x chainring (30, 32 or 34 teeth)
WITHOUT bottom bracket cups!

ATTENTION:
NOT compatible with SHIMANO 11-speed components.
