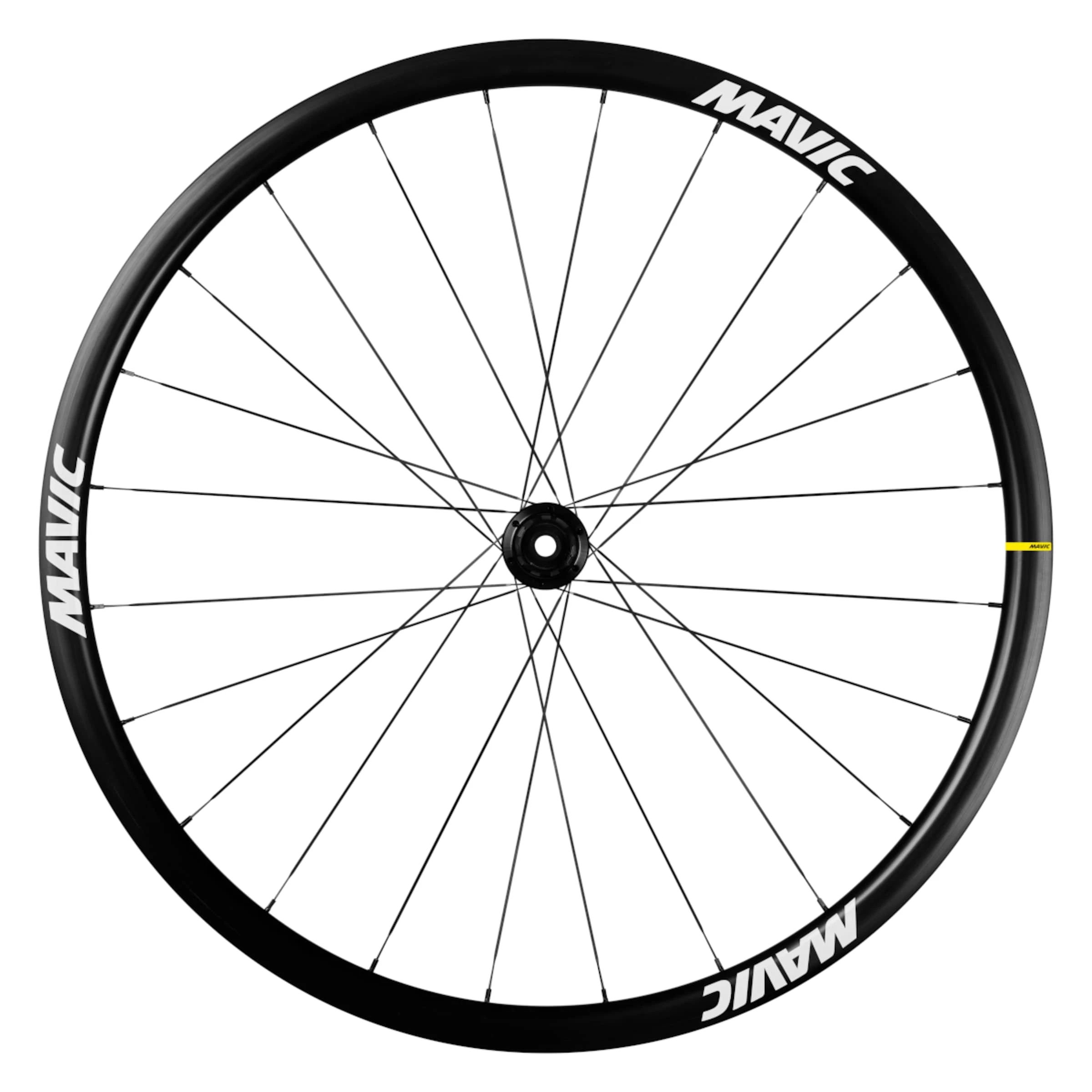

Ksyrium 30 Disc Road Rear Wheel Centerlock 28“/700C SHIMANO

The semi-aero rim of the Ksyrium 30 Disc road rear wheel combines light weight and dynamics. This is made possible by tuned rim wall thicknesses to hit the “sweet spot” between stiffness, strength and weight in the best possible way. The rim profile also optimises aero performance and increases riding stability in crosswinds.

The Ksyrium 30 Disc combines proven Mavic technologies and attractive design in a lightweight and robust system wheel. In combination with the high-quality finish, the aluminium wheel for modern disc brakes marks the perfect entry to racing performance at a particularly ambitious level.

Mavic’s UST Tubeless technology not only improves rolling resistance and grip, but also reduces the risk of punctures. Straight aero spokes at the Infinity hub platform ensure optimally balanced spoke tension for perfect stiffness and power transmission, while the robust Instant Drive 360 freewheel with 9° engagement angle ensures fast engagement and low friction during effective propulsion.

With its discreet design, the Mavic Ksyrium 30 Disc MTB rear wheel not only rides fast, it also looks fast! The matt lacquered hub, the high-quality SUP-welded and almost invisible rim seam as well as deep black bladed spokes give the wheel a premium look and add style to your road bike.

Top technologies:
• Maxtal aluminium alloy: Light and strong – this special aluminium alloy offers a better strength-to-weight ratio than conventional 6106 alloys.

• SUP (Soudé Usiné Process): Particularly stable, arc-welded rim joint where the weld of the rim joint is perfectly flat milled for a seamless, smooth transition to achieve balanced rotation without brake vibrations.

• UST tubeless technology: The Mavic standard for tubeless tyres not only improves traction, comfort and rolling resistance, but also reduces the risk of tyre defects.

• QRM Auto (Qualité de Roulements Mavic Auto): Smooth-running, double-sealed and maintenance-free industrial bearings with high dimensional accuracy and self-adjusting bearing preload.

• ID 360 Instant Drive: A lightweight and low-friction Dual Ratchet freewheel system with a fast 9° engagement angle. Thanks to the modular hub design, it offers high compatibility with common axle types and freewheel standards.

Technical details:
• Rim material: Maxtal aluminium
• Wheel size: 28″ / 700C
• UST Road Tubeless
• Rim profile optimised for disc brakes
• Rim width: approx. 24 mm
• Rim depth: approx. 30 mm
• Inner rim width: 19 mm
• ETRTO: 19 – 622
• For Presta valve

• Spokes: double butted flat spokes (straight pull)
• Number of spokes: 24 pcs
• Lacing: 2-cross
• Nipples: steel, self-locking

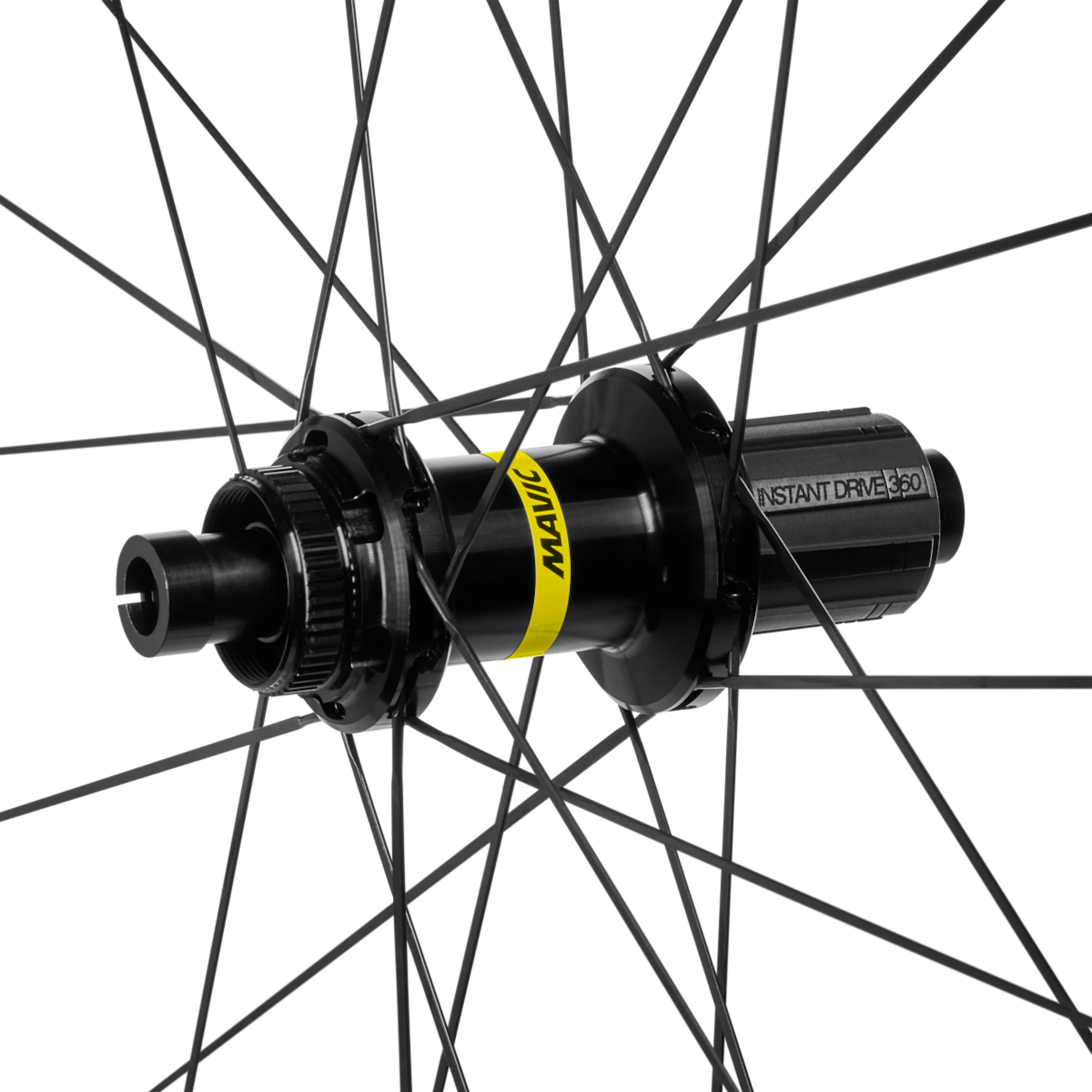

• Hub type: Mavic Infinity Hub
• Hub material: aluminium hub body, aluminium axle
• Brake disc mount: Centerlock
• Freewheel: robust Instant Drive 360 freewheel system (toothed disc system)
• Compatibility: 8/9/10/11-speed SHIMANO HG/SRAM
• Bearings: self-adjusting, sealed cartridge bearings (QRM Auto)
• Hub width: 12 x 142 mm thru axle
• Weight: approx. 950 g
• Recommended tyre width: 25 – 32 mm
• Recommended max. system weight: 120 kg (cyclist, bike, gear and luggage)
• ASTM category 2: for on and off-road use with jumps up to 15 cm

In the box:
• 1 Mavic Ksyrium 30 Disc Centerlock 28“/700C road rear wheel SHIMANO HG
• 1 Mavic UST valve

Note:
Mavic UST wheels may also be used with inner tubes in the standard version.
Please make sure to fill the tyre with sufficient sealant before using the Mavic UST wheels tubeless!
