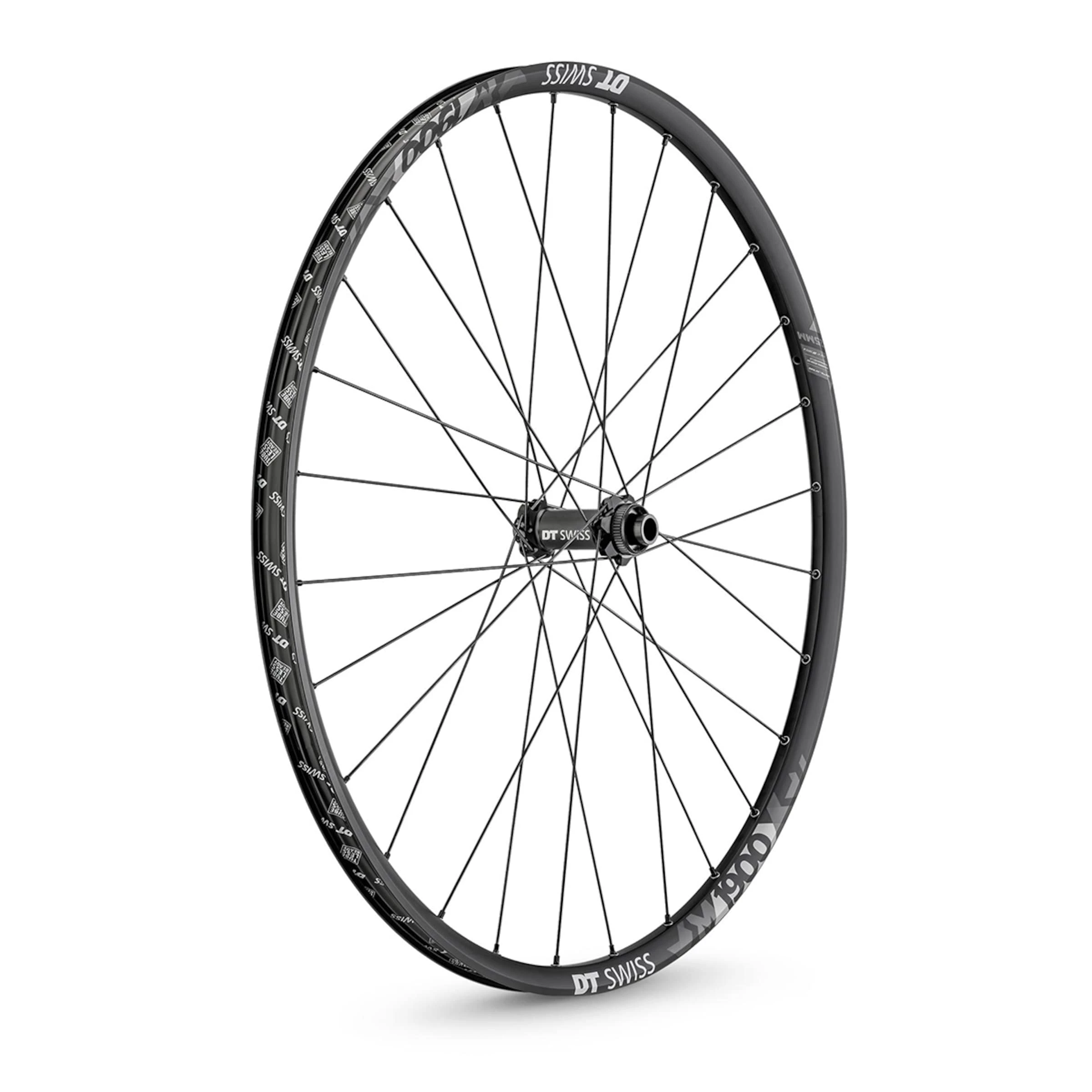

M 1900 Spline® 25 Disc BOOST 27.5″ MTB Front Wheel

The all-rounder among the DT Swiss system wheels – top technology from the Swiss wheel specialists in an affordable overall package!

The M 1900 Spline® front wheel with 25 mm inner width has everything and was specially developed for the requirements of modern all-mountain bikes. This high-quality, CNC-milled 370 Spline® hub incorporates the entire hub know-how of DT Swiss.
Forces from and to the hub are transmitted via particularly robust straight-pull spokes. The rim, which is as light as it is stable, impresses with excellent support of the modern MTB tyre flanks and problem-free tubeless compatibility.

Technologies:

• TUBELESS:
All DT Swiss wheels are tubeless ready. The profiles of the DT Swiss rims are specially designed for tubeless use. The rim profile makes it easier to fit the right tyre and ensures a perfect fit. The tubeless system of the rim consists of DT Swiss Tubeless Ready Tape for sealing and a DT Swiss tubeless valve in a length that complies with the rim. When using tubeless ready tyres, it is mandatory to use a compatible sealant. However, it is also possible to use a conventional combination of tyre and inner tube.

• BEARINGS:
Having learned from years of experience, DT Swiss only uses durable cartridge bearings without bearing play adjustment. DT Swiss hubs are designed to have the optimum axial and radial bearing play when they are properly installed. The correct preload of the bearings to compensate for the clamping force of the wheel mounting system is the basis for a play-free hub with minimum friction.

• PRO LOCK®:
DT Pro Lock® prevents the spoke-nipple connection from loosening. In the Pro Lock® process, a special dual component adhesive is injected into the nipple thread, allowing for extremely durable wheel builds. By threading the nipple onto the spoke the adhesive is activated and then hardens completely within a few hours. Re-truing the wheel is possible, yet it will cause a slight decrease in the adhesive power each time.

Technical details:

Rim:
• Wheel size: 27.5″ / 650B
• Rim material: aluminium
• Rim type: clincher
• Brake type: disc brake
• Rim depth: 19.5 mm
• Rim width: 30 mm
• Inner rim width: 25 mm
• ETRTO: 25 – 584
• For Presta valve (Ø 6.5 mm)
• Tubeless ready
• Suitable for tyre widths: 1.5″ – 3.0″

Spokes and nipples:
• Spoke type: DT Swiss champion® straightpull
• Number of spokes: 28 pieces
• Lacing: 3-cross
• Nipples: DT Swiss ProLock® Squorx ProHead alu

Front hub:
• 370, Spline®, 2 sealed cartridge bearings
• For disc brakes
• Aluminium hub body
CenterLock brake rotor mount (IS 6-bolt with adapter, e.g. product code: 2314106)
• Front hub spacing: 15 x 110 mm (BOOST thru axle)

Weight:
• Weight: approx. 845 g
• ASTM classification: 4 (for extremely rough, blocked terrain with jumps/drops of up to 121 cm)
• Max. system weight: 120 kg (cyclist, bike, gear and luggage)

In the box:
• 1 DT Swiss M 1900 Spline® 25 BOOST front wheel
• 1 DT Swiss Tubeless-Ready Tape (rim tape, pre-mounted)
• 1 DT Swiss tubeless valve
