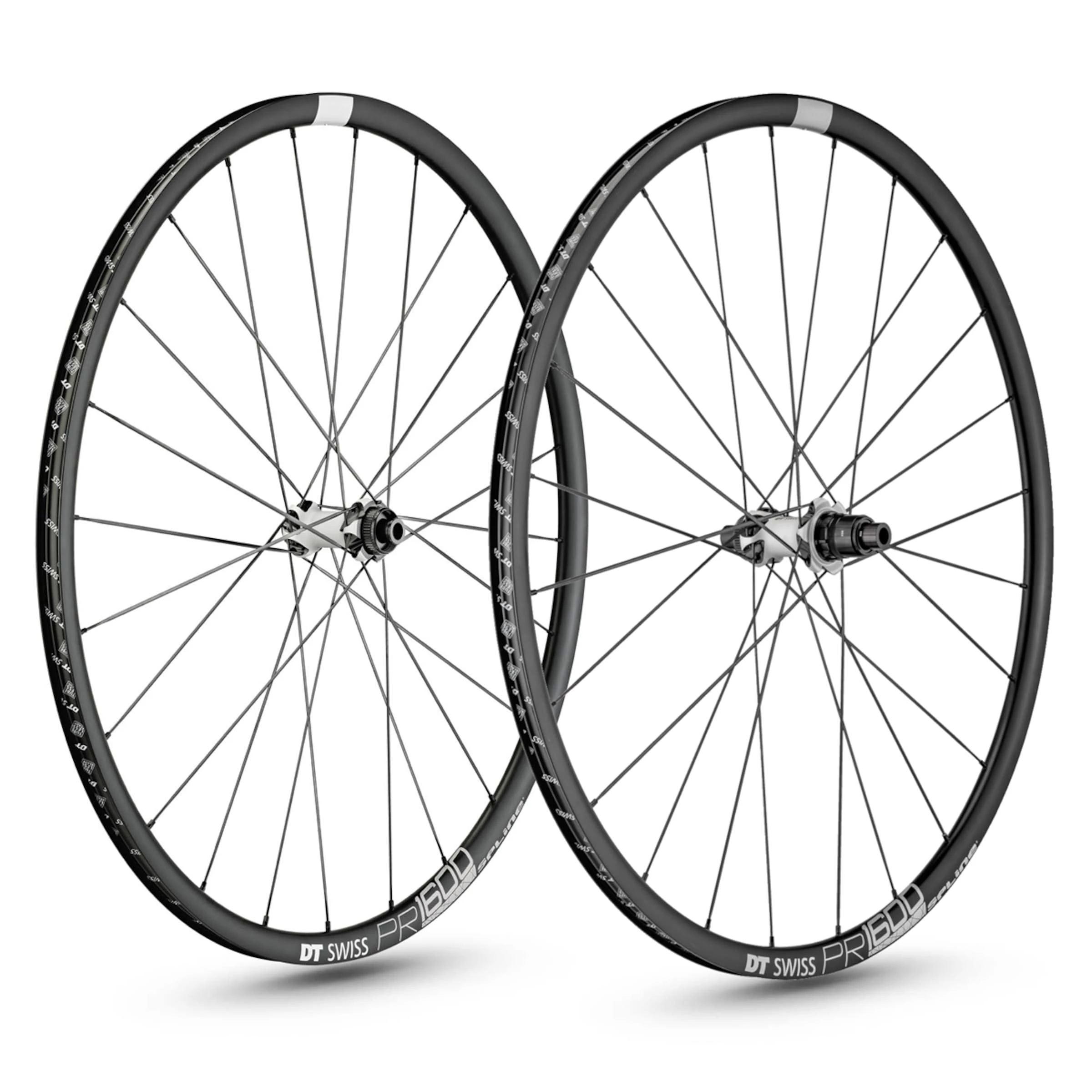

PR 1600 Spline® DB 23 Road Wheels 28″/700C SRAM XDR

When speed meets comfort, there needs to be no compromise!
The PR 1600 Spline® DB 23 road wheels from wheel specialist DT Swiss prove this in an impressive way. They combine durability and low weight as well as stiffness and comfort.
The high-quality and stable aluminium rim of the PR 1600 Spline® with its 18 mm inner rim width is perfectly suited for use with large-volume road bike tyres. What’s more, the hassle-free tubeless compatibility allows you to enjoy the many advantages of modern tubeless systems. Lower weight, less rolling resistance, better puncture protection and greater comfort are, after all, not just arguments for professional riders. Ambitious hobby athletes especially benefit from these properties. The high-quality 3D machined DT Swiss Spline® hub with bladed aero spokes, excellent bearings and the proven ratchet freewheel system provide maximum acceleration without friction loss. The reliable system with high-precision star ratchets guarantees high durability and fast engagement.
The outstanding performance of the DT Swiss PR 1600 Spline® DB 23 wheels helps you to reach top performance in training as well as to keep ahead of your rivals in competitions.

Technologies:
• RATCHET SYSTEM:
The Ratchet System from DT Swiss has proven itself through high reliability. This reliability is the result of the simultaneous meshing of the teeth of two high-precision star ratchets, which distributes the forces evenly over a large contact area. With the DT Swiss Ratchet System, two conical springs ensure the correct alignment of the ratchets. The degree engagement depends on the number of teeth. The no-tool concept allows easy maintenance and tool-free conversion to common axle and freehub body standards.

• TUBELESS:
All DT Swiss wheels are tubeless ready. The profiles of the DT Swiss rims are specially designed for tubeless use. The rim profile makes it easier to fit the right tyre and ensures a perfect fit. The tubeless system of the rim consists of DT Swiss Tubeless Ready Tape for sealing and a DT Swiss tubeless valve in a length that complies with the rim. When using tubeless ready tyres, it is mandatory to use a compatible sealant. However, it is also possible to use a conventional combination of tyre and inner tube.

• BEARINGS:
Through years of experience, DT Swiss only uses durable cartridge bearings without bearing play adjustment. DT Swiss hubs are designed to have the optimum axial and radial bearing play when they are properly installed. The correct preload of the bearings to compensate for the clamping force of the wheel mounting system is the basis for a play-free hub with minimum friction.

• PRO LOCK®:
DT Pro Lock® prevents the spoke-nipple connection from loosening. In the Pro Lock® process, a special dual component adhesive is injected into the nipple thread, allowing for extremely durable wheel builds. By threading the nipple onto the spoke the adhesive is activated and then hardens completely within a few hours. Re-truing the wheel is possible, yet it will cause a slight decrease in the adhesive power each time.

Technical details:
Rim:
• Rim material: aluminium
• Rim type: clincher (symmetrical)
• Brake type: disc brake
• Rim depth: 23 mm
• Rim width: 22 mm
• Inner rim width: 18 mm
• ETRTO: 622 – 18
• For Presta valve (Ø 6.5 mm)
• Tubeless ready
• Recommended tyre width: 1.0″ – 1.2″ (25 – 30 mm)

Spokes and nipples:
• Spoke type front wheel: DT aero comp® wide straightpull
• Spoke type rear wheel: DT aero comp® wide straightpull (left), DT new aero® straightpull (right)
• Number of spokes: 24 pcs each
• Spoke pattern: 2-cross
• Nipples: DT Swiss Pro Lock® Squorx ProHead alu

Front hub:
• 350, Spline®, 2 sealed cartridge bearings
• For disc brakes
• Aluminium hub body
• CenterLock brake rotor mount (IS 6-bolt with adapter, prod. code: 2283716)

Rear hub:
• 350, Spline®, 4 sealed cartridge bearings
• For disc brakes
• Aluminium freehub and body
• CenterLock brake rotor mount (IS 6-bolt with adapter, prod. code: 2283716)
• Ratchet freewheel system, 18T(20° degree engagement)

Axle:
• Front wheel: 12 x 100 mm (thru axle)
• Rear axle: 12 x 142 mm (thru axle)

Cassette compatibility:
• SRAM XDR™ 12-speed road cassettes

Weight:
• Weight: approx. 750 g (front wheel), 870 g (rear wheel)
• ASTM classification: 1 (for use on asphalt roads)
• Max. system weight: 120 kg (cyclist, bike, gear and luggage)

In the box:
• 1 DT Swiss PR 1600 Spline® DB 23 front wheel
• 1 DT Swiss PR 1600 Spline® DB 23 rear wheel SRAM XDR
• 2 DT Swiss Tubeless Ready rim tapes 21 mm (fitted)
• 2 DT Swiss tubeless valves 32 mm

Attention:
Only for use with XDR™ compatible cassettes! A 1.85 mm spacer is required for the installation of XD™ compatible cassettes.
