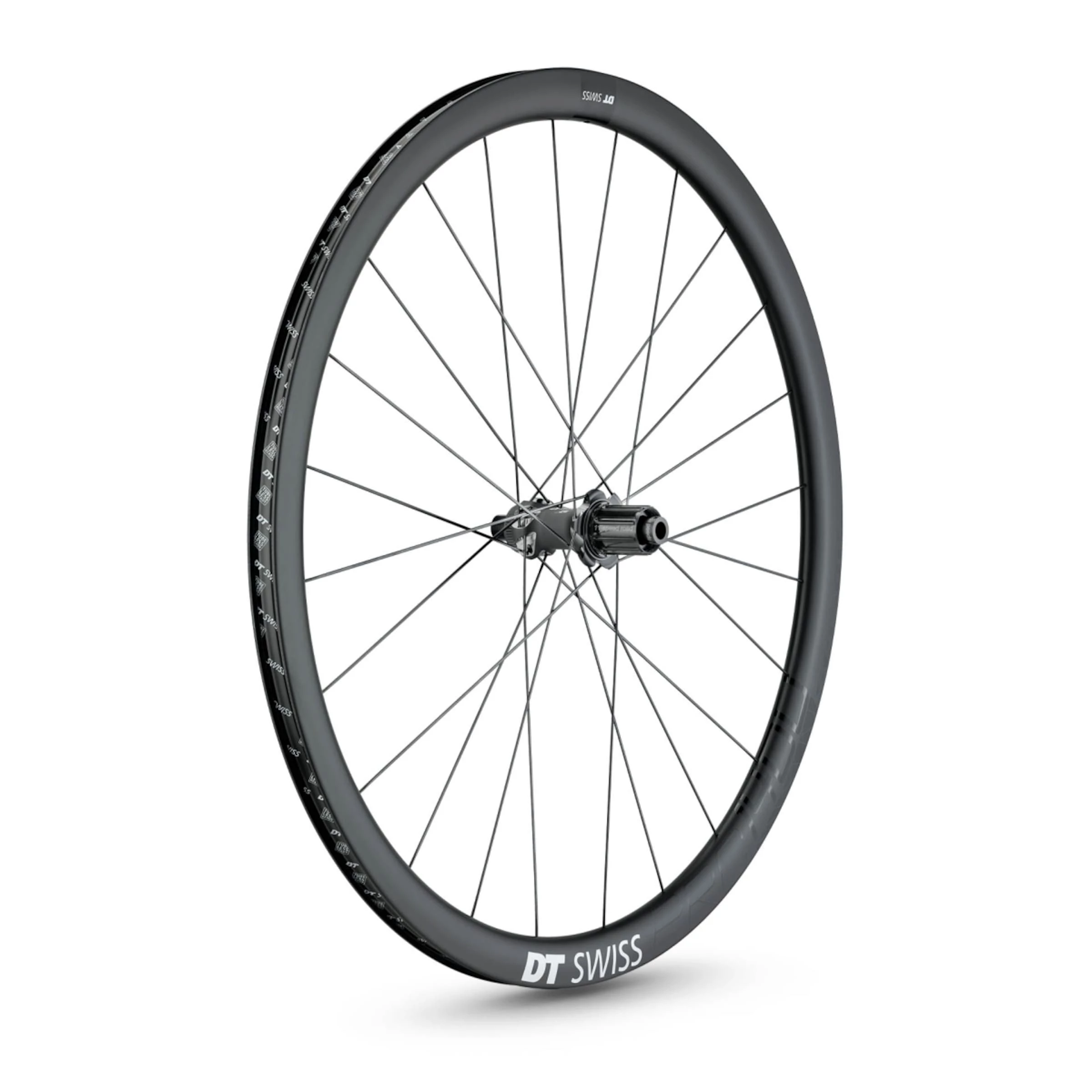

PRC 1400 Spline® DB 35 SHIMANO HG / SRAM XDR™ Road Rear Wheel 28″/700C

Developed for tough World Tour races, the PRC 1400 Spline® 35 DB carbon rear wheel by DT Swiss is the ultimate all-rounder for competitions.
Yet, the almost perfect combination of a low weight, high stiffness and reliability with powerful disc brakes not only impresses on the Pro Tour, but is also ready to face any kind of challenge. The proven DT 240 Spline® hub with high-quality cartridge bearings and the reliable DT Swiss Ratchet SL freehub system guarantees an efficient ride wherever you go. Robust DT Swiss straight pull aero spokes and DT ProLock hidden aluminium nipples inside the high-end 35 mm deep carbon rim ensure outstanding aerodynamics and reduced air resistance.
So no matter whether you want to cross the Alps, ride a professional stage race, do a circuit on a Saturday afternoon or beat your personal best on your home turf – the PRC 1400 Spline® 35 DB wheel is a great choice.

Technologies:

• RATCHET SL:
With the Ratchet SL freewheel system from DT Swiss, the designation “SL” (Super Light) means that the ratchets are lighter than those of the classic DT Ratchet System, thanks to additional machining. Depending on the equipment, the ratchets of the Ratchet System hubs have an engagement angle between 6.7° and 20°. The system stands out for high reliability thanks to the simultaneous meshing of the teeth, which leads to significantly lower point loads. The no-tool concept allows easy maintenance and tool-free conversion to common axle and freehub body standards.

• TUBELESS:
All DT Swiss wheels are tubeless ready. The profiles of the DT Swiss rims are specially designed for tubeless use. The rim profile makes it easier to fit the right tyre and ensures a perfect fit. The tubeless system of the rim consists of DT Swiss tubeless ready tape for sealing and a DT Swiss tubeless valve in a length that complies with the rim. When using tubeless ready tyres, a compatible sealant must be used. However, it is also possible to use a conventional combination of tyre and inner tube.

• BEARINGS:
Having learned from years of experience, DT Swiss only uses durable cartridge bearings without bearing play adjustment. DT Swiss hubs are designed to have the optimum axial and radial bearing play when they are properly installed. The correct preload of the bearings to compensate for the clamping force of the wheel mounting system is the basis for a play-free hub with minimum friction.

• PRO LOCK®:
DT Pro Lock® prevents the spoke-nipple connection from loosening. In the Pro Lock® process, a special dual component adhesive is injected into the nipple thread, allowing for extremely durable wheel builds. By threading the nipple onto the spoke the adhesive is activated and then hardens completely within a few hours. Re-truing the wheel is possible, yet it will cause a slight decrease in the adhesive power each time.

Technical details:

Rim:
• Wheel size: 28”
• Rim material: carbon
• Rim type: clincher
• Brake type: disc brake
• Rim depth: 35 mm
• Rim width: 25 mm
• Inner rim width: 18 mm
• ETRTO: 622 – 18
• For Presta valve (Ø 6.5 mm)
• Tubeless ready
• Suitable for tyre widths: 23 – 56 mm (recommended max. tyre width: 30 mm)

Spokes and nipples:
• Spoke type: DT aero comp® straight pull
• Number of spokes: 24 pcs
• Spoke pattern: 2-cross
• Nipples: DT Swiss Pro Lock® hidden aluminium

Hub body:
• 240, Spline®, 4 bearings, sealed
• For disc brakes
• Aluminium freewheel and aluminium hub body
• CenterLock brake rotor mount (IS 6-bolt with adapter, e.g. prod. code: 2283716)
• Ratchet SL freewheel system, 36T (10° degree engagement)

Axle:
• Rear axle: 12 x 142 mm (thru axle)

Sprocket compatibility (with pre-mounted SHIMANO HG Spline L freewheel):
• SHIMANO 8-/9-/10-/11-speed Road/MTB cassettes and SHIMANO ROAD 12-speed cassettes
• SRAM 8-/9-/10-speed Road/MTB cassettes
• SRAM 11-speed Road cassettes
as well as other SHIMANO HG-compatible sprockets.

Cassette compatibility (with optional SRAM XDR™ freehub body):
• SRAM XDR™ 12-speed road cassettes
• SRAM XD™ 11-/12-speed MTB cassettes (requires separately available 1.85 mm spacer ring!)
as well as other SHIMANO HG-compatible cassettes.

Weight:
• Weight: approx. 794 g
• ASTM classification: 1 (for use on asphalt roads)
• Max. system weight: 110 kg (cyclist, bike, gear and luggage)

In the box:
• 1 DT Swiss PRC 1400 Spline® DB 35 road rear wheel
• 1 DT Swiss SHIMANO HG Spline L freehub body (fitted)

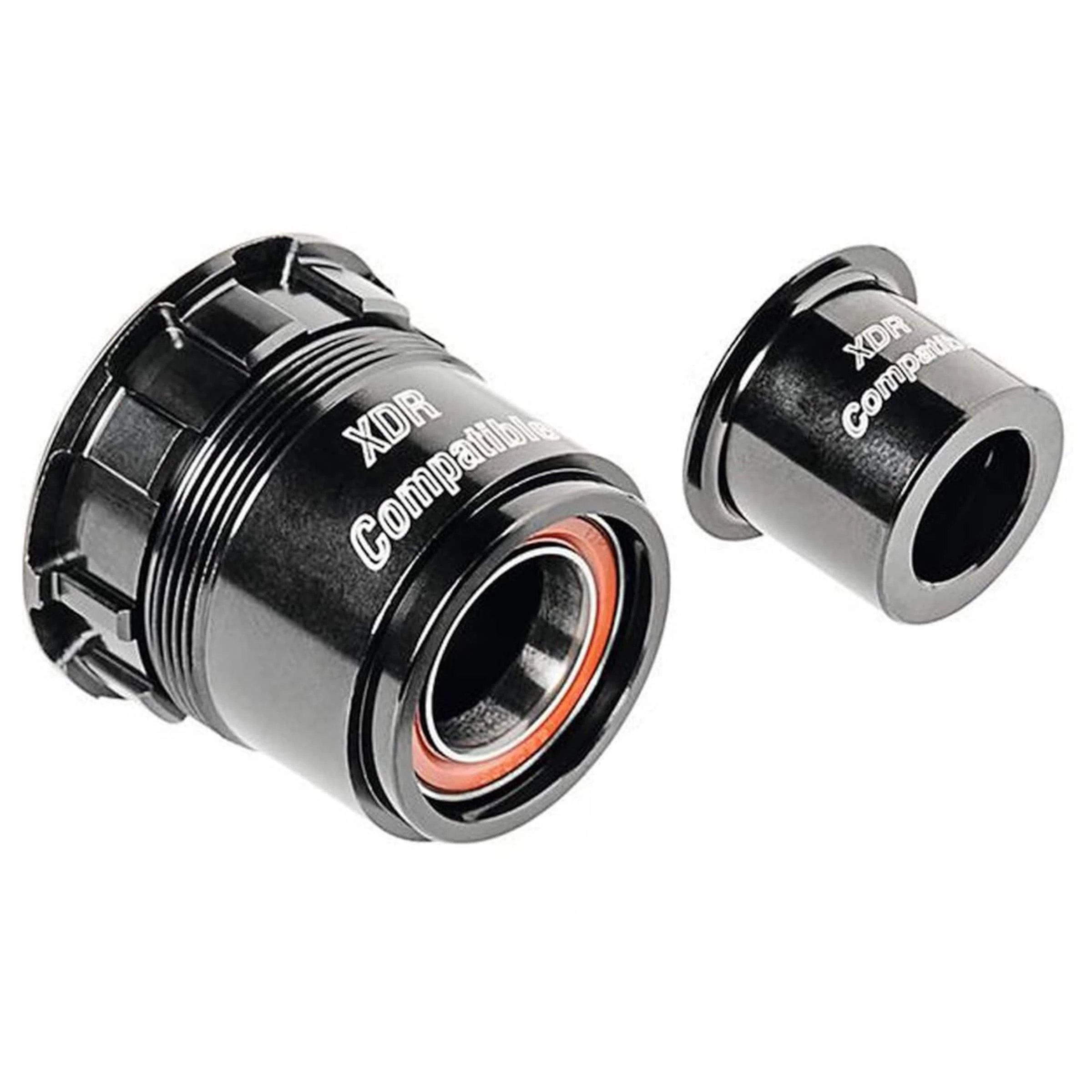

• 1 DT Swiss SRAM XDR™ freehub body
• 1 DT Swiss Tubeless Ready rim tape 25 mm (fitted)
• 1 DT Swiss tubeless valve 36-48 mm

Tip:
The freehub body can be exchanged without tools. A how-to video from DT Swiss on changing the freehub body can be found here:
https://www.dtswiss.com/de/support/how-to-videos
You can find the DT Swiss special grease you may need under prod. code: 226341701
