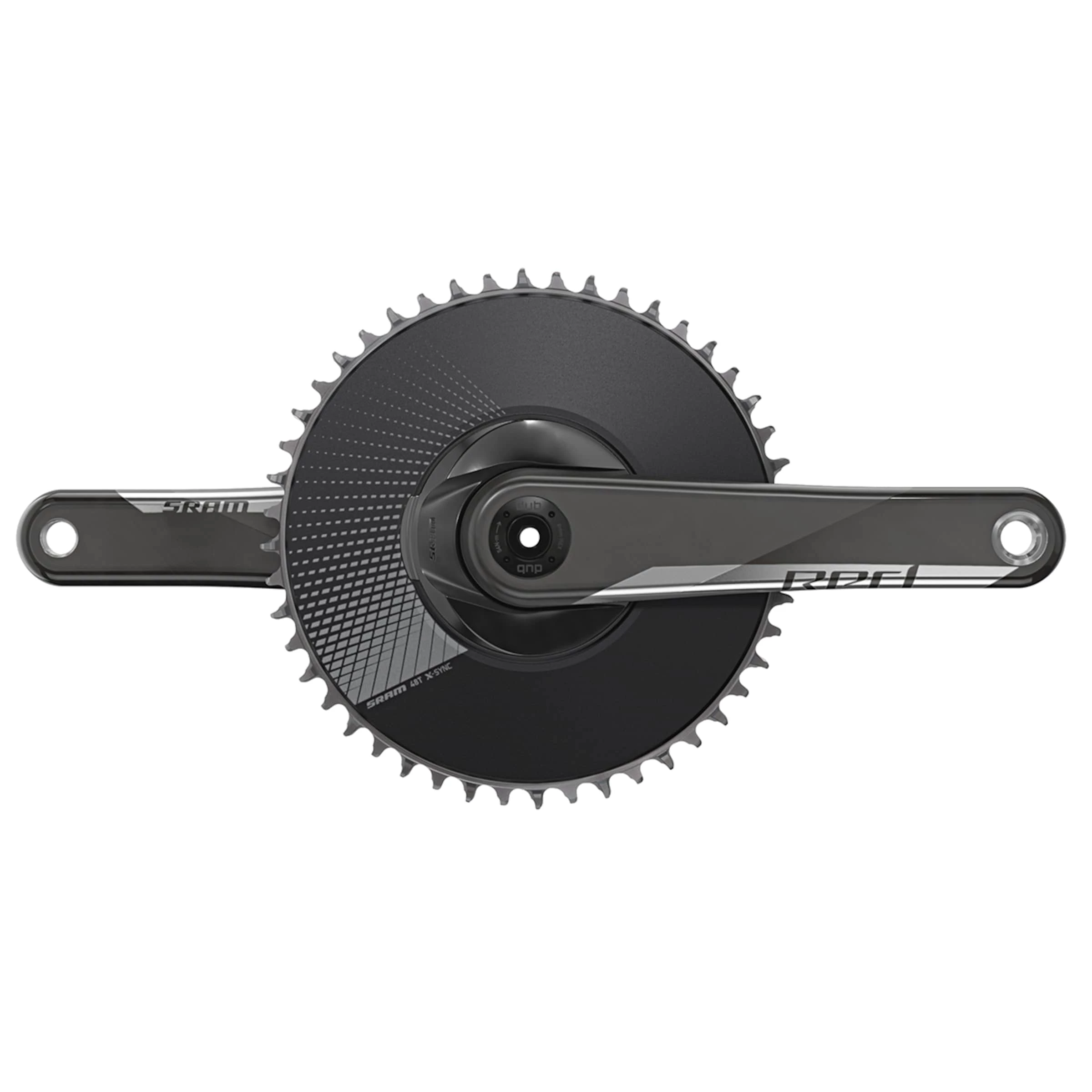

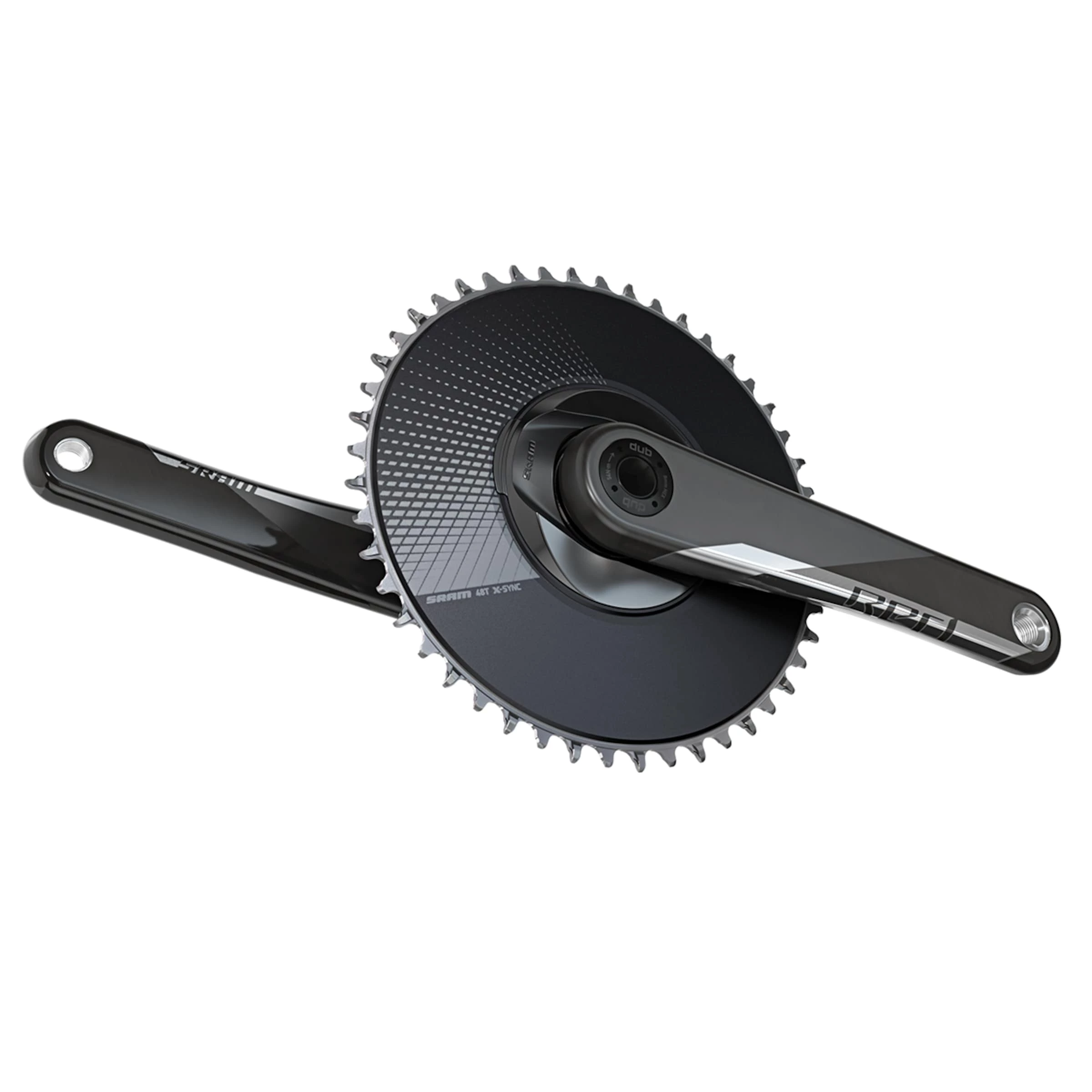

RED®1 Aero Crankset 1×12

Time trial, triathlon or stage races in flat terrain. Some kinds of bicycle racing sports are predestined for the use of an uncomplicated singlespeed drivetrain. The RED®1 Aero 12-speed crankset by SRAM is just the right tool for you to show maximum performance. As an important component of SRAM’s X-Range™ technology, it helps shift the gear range from the front to the rear. DirectMount Aero chainrings make for improved aerodynamics and the elimination of a front derailleur and a second chainring reduces the weight while increasing the functionality for a particularly intuitive drivetrain. After all, a wide range of gears makes less sense in time trial – whereas efficient gear and cadence control prove advantageous.

Specifically developed for electronic shifting, SRAM’s RED®1 Aero crankset impresses not only with elegant Exogram™ carbon crank arms, but also with the possibility to upgrade it with a powerful power meter whenever you want.

Details:
• Part of the X-Range™ technology
• Exogram™ technology: hollow carbon arms for high stiffness and low weight
• Direct Mount Aero chainrings for improved aerodynamics
• Proven X-SYNC™ Narrow-Wide tooth profile for maximum chain control
• DUB™ technology: 28.99 mm axle Ø for improved protection against dirt and full compatibility with all common BB standards
• Allows for subsequent upgrade with power meter

Specs:
• Use: Road / Triathlon / Time Trial (TT)
• Compatible with SRAM Road 12-speed chains
• Carbon crank arms
• DirectMount Aero chainring
• Material chainring: 7075 T6 aluminium
• Chain line: 45 mm
• Weight: approx. 558 g (175 mm / 48 teeth)

Crankarm length:
• 170 mm
• 172.5 mm
• 175 mm
Please make your choice.

Gear ratio:
• 48 teeth
• 50 teeth
Please make your choice.

In the box:
• SRAM RED®1 Aero crankset 1×12 incl. Aero chainring (WITHOUT bottom bracket)

Compatible bottom brackets:
• SRAM DUB™ bottom bracket cups with BSA thread (product code: 2273154)
• SRAM DUB™ bottom bracket cups PressFit 30 / BB30 (product code: 2273156)
• SRAM DUB™ bottom bracket cups Pressfit BB86.5 Road (product code: 2285969)
• SRAM DUB™ bottom bracket cups Pressfit BB386 Road (product code: 2285971)

Tip:
For the SRAM RED® AXS™ Power Meter Kit 1×12 for a subsequent upgrade see product code: 2285252.
