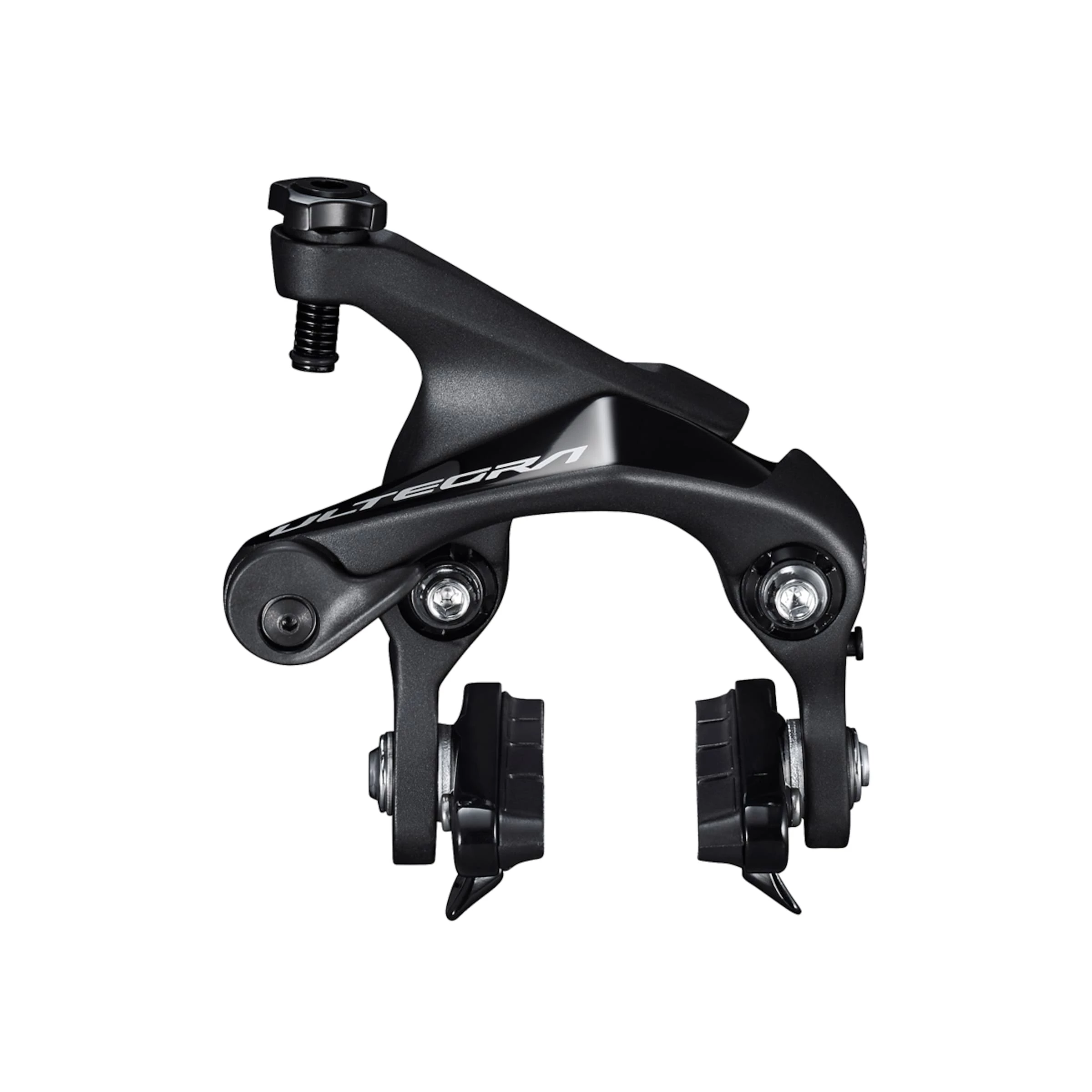

Ultegra BR-R8110 Direct Mount Brake Calliper

The slim SHIMANO Ultegra BR-R8110 Direct Mount brake calliper impresses with a controlled and reliable braking effect. With clear feedback, the rim brake can be excellently dosed on long descents and before sharp bends. Here, the compact design in chic anthracite plays off the advantages with a balanced ratio of stiffness and weight.
The powerful brake is attached to the mounting points of your Direct Mount road bike fork or to the seat tube stays of your Direct Mount road bike frame.

Details:
• Direct Mount SHIMANO Ultegra R8100 series side-pull brake
• Symmetrical dual pivot design reduces friction while increasing control and performance
• Angle-adjustable cartridge brake pads for perfect alignment (R55C4)

Technical details front:
• Intended use: Road bike
• Series: Ultegra
• Model: BR-R8110-F
• Material: aluminium (anodized)
• Mount: front wheel
• Front mount: for road bike forks with Direct Mount (bolt spacing: 49 mm, bolt Ø 8 mm, threaded receptacle: M6 x 1)
• Brake arm length: 51 mm
• For rim width: 20.8 to 28 mm
• Max. tyre width: 28 mm
• Front brake pad dimensions (measured from fixing bolt to brake shoe nut): 24 – 34 mm
• Weight: approx. 180 g

Technical details rear:
• Intended use: Road bike
• Series: Ultegra
• Model: BR-R8110-RS
• Material: aluminium, anodized
• Mount: rear wheel
• Rear mounting: on the seat tube stays of road bike rear triangles with DirectMount (bolt spacing: 49 mm, bolt Ø 8 mm, threaded receptacle: M6 x 1)
• Brake arm length: 51 mm
• For rim width: 20.8 to 28 mm
• Max. tyre width: 28 mm
• Rear brake dimensions (measured from fixing bolt to brake shoe nut): 24 – 34 mm
• Weight: approx. 178 g
Please indicate your choice.

In the box:
• 1 SHIMANO Ultegra BR-R8110 Direct Mount brake calliper (front or rear)
