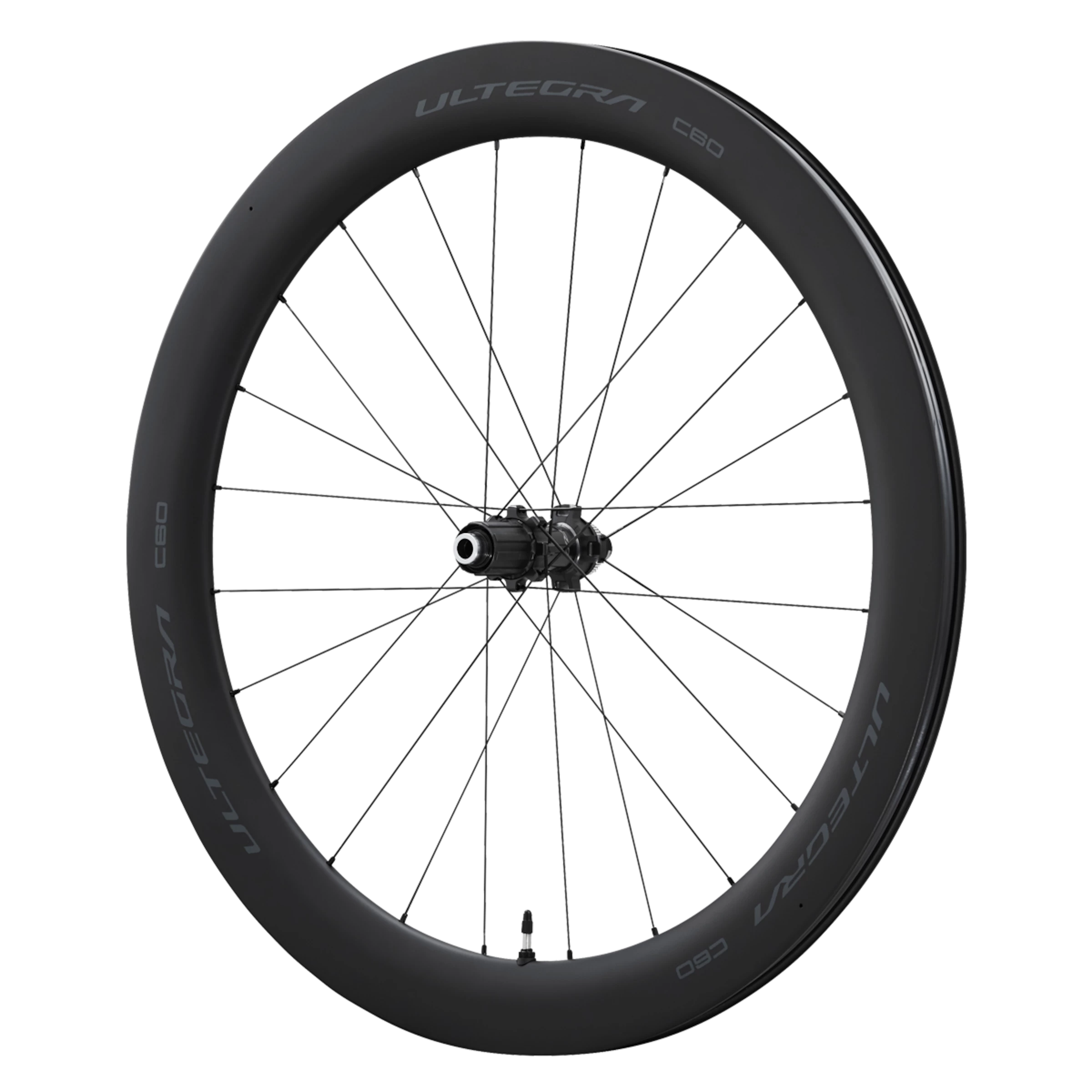

Ultegra WH-R8170-C60-TL Disc Centerlock Road Rear Wheel 28″/700C

The Ultegra WH-R8170-C60-TL Disc rear wheel by SHIMANO offers an optimal balance of aerodynamics, stiffness, reliability and weight.

The 60 mm deep carbon rim, aerodynamically optimised bladed spokes and an extremely efficient hub give you plenty of propulsion and let you literally cut through the wind. Being tubeless-ready and having an inner rim width of 21 mm, the WH-R8170-C60-TL Disc by SHIMANO can handle the trend towards wider road bike tyres, while also providing low rolling resistance, increased comfort, and improved grip when riding tubeless. Double-butted spokes with a 1.6 mm thin centre section make for high lateral stiffness and vertical compliance.

Therefore, SHIMANO’s WH-R8170-C60-TL Disc rear wheel is the perfect choice, if you want to compete for the win, set a new best time on your favourite route or just like to ride fast.

Details:
• Aerodynamically optimised wheel with 60mm carbon rim
• Single rear wheel for disc brakes
• Tubeless ready

Technical details:
• Intended use: Road bike
• Series: Ultegra
• Model: WH-R8170-C60-TL-R
• Rim material: carbon

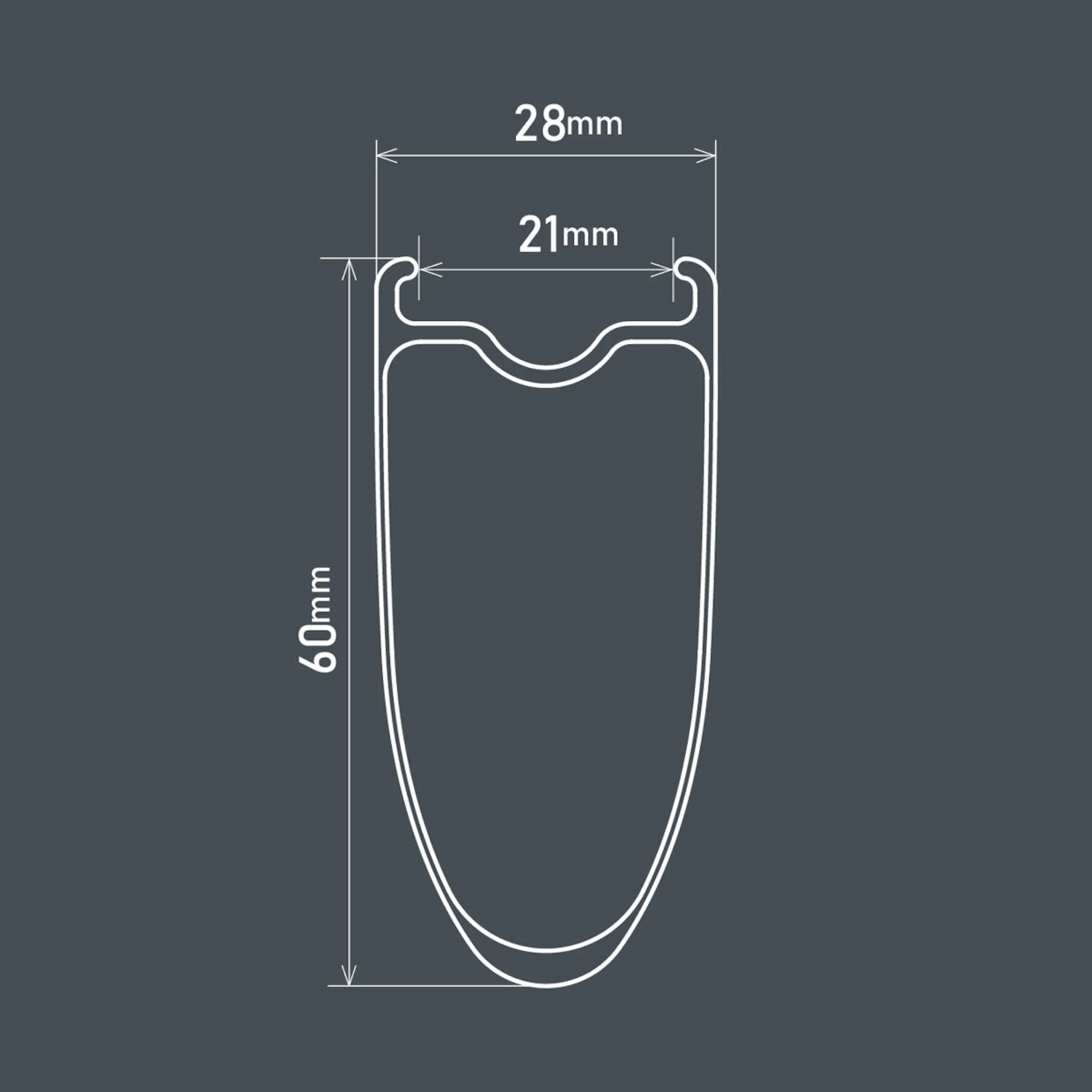

• Rim width/depth: 28 mm / 60 mm
• Inner rim width: 21 mm
• ETRTO: 21-622
• Recommended tyre width: 25 mm – 32 mm
• Spoke type: butted straight pull aero spokes (2.0 – 1.6 – 2.0)
• Number of spokes: 24 pcs
• Spoke pattern: 2-cross
• Nipples: aluminium
• Hub body: aluminium (anodised)
• Axle: aluminium (anodised)
• Freehub body: SHIMANO HG Spline L (steel)
• Compatible with these cassettes: 8-/9-/10-speed SHIMANO /SRAM, 11-speed SHIMANO/SRAM Road, 11-speed SHIMANO MTB, 12-speed SHIMANO Road
• Brake disc mount: Center Lock
• Front hub spacing: 12 x 142 mm (thru axle)
• Weight: approx. 911 g

In the box:
• 1 SHIMANO Ultegra WH-R8170-C60-TL rear wheel
